Modular F.R.L.

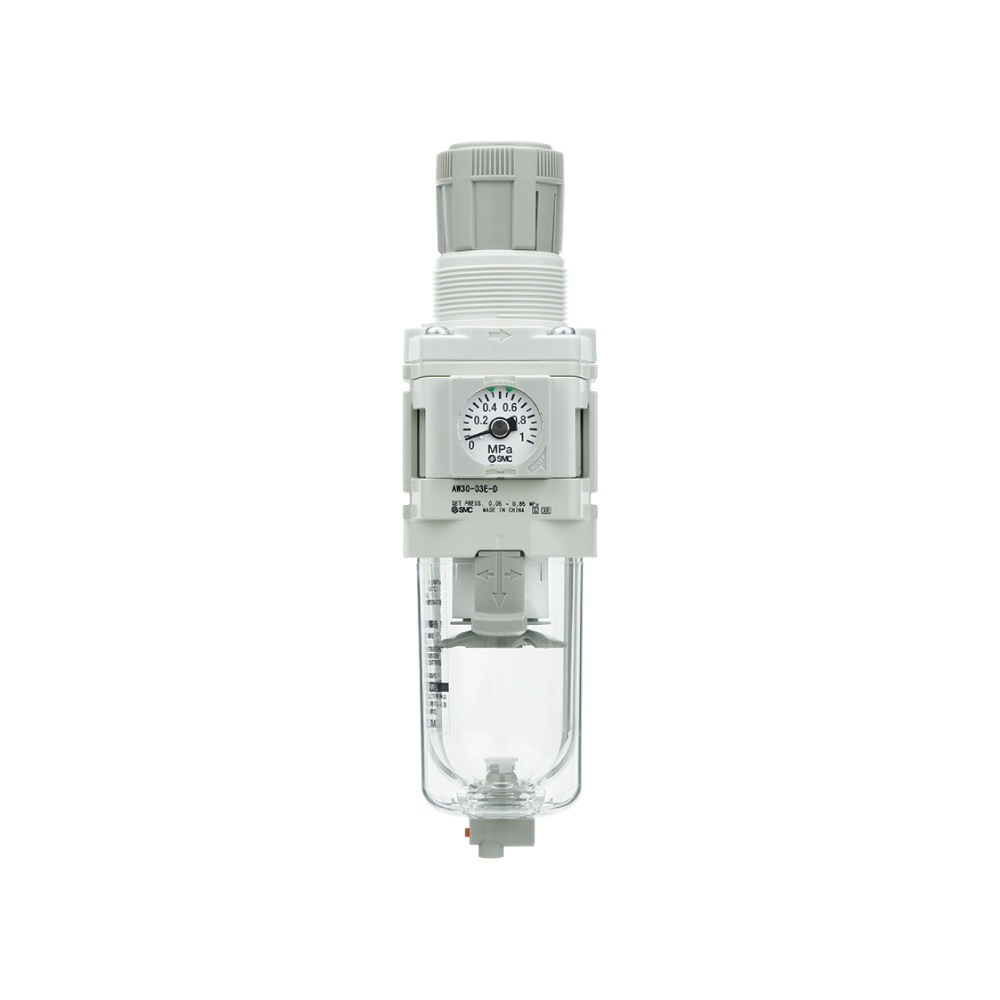

Filter Regulator AW-D

• ・Integrated filter and regulator units save space and require less piping.
  ・Easy to handle
  　Easy to hold when unlocked
  ・Better visibility & environmental resistance
  　2-layer construction: The bowl is covered with a transparent bowl guard!
  　Better visibility: 360°
  ・Interchangeability is maintained.
  　The mounting pitch for panel mounting is interchangeable with the AW(K)-B.
  　The brackets and set nuts are the same for both existing and new products.

• Series	Port size	Set pressure (MPa)	Filtration (μm)
  AW20 to 60-D	1/8，1/4，3/8，1/2，3/4，1	0.05 to 0.85 0.02 to 0.2	5

  Features

  Modular Design with Uniform Body Style



  A right angle square type pressure gauge and a cross adapter attachment have been added. New



  Transparent bowl guard

  Better environmental resistance: The transparent bowl guard protects the inner bowl!




  Better visibility: 360°



  • No tools are required.

    Easier replacement of the element
    * AF20-D to AF40-D only



  Selection of pressure gauges, Easy to handle



  Mounting (Single unit)

  ・The mounting pitch for panel mounting is interchangeable between the AR20(K)-D to AR40(K)-06-D and the AR(K)-B series and between the AW20(K)-D to AW40(K)-06-D and the AW(K)-B series.
  The brackets and set nuts are the same for both existing and new products.



  Series Configuration



  Table of Modular F.R.L. Unit Combinations for AC Assembly



  Attachment List



  Space saving/Reduced piping labor



  Improved piping design flexibility



  The direction the pressure gauge faces can be changed freely.



  Improved piping design flexibility



  Size conversion is possible

  ・Flow capacity UP
  ・Extended maintenance cycle



  Simple Specials System

  A system designed to respond quickly and easily to your special ordering needs



  Please contact your local sales representative for more details.


  Examples of Simple Specials
