Standard Air Cylinders (Square Cover）

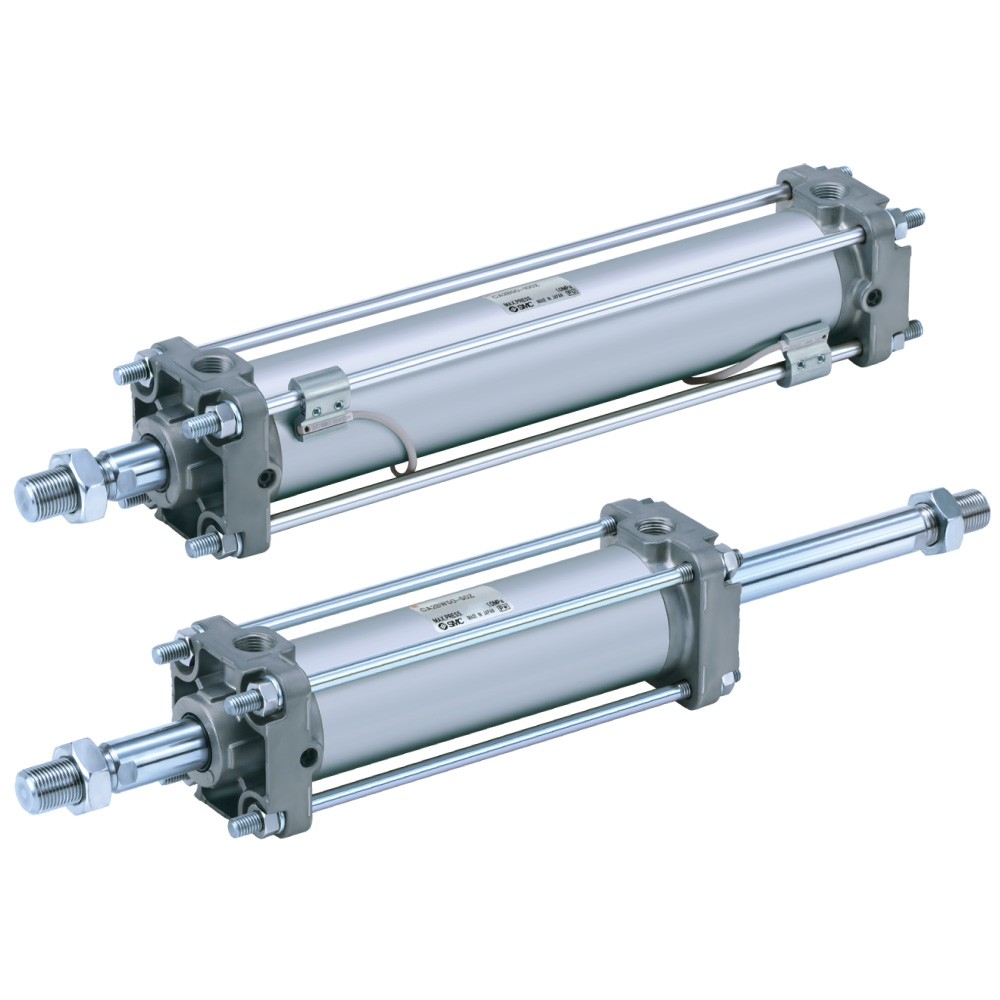

Air Cylinder CA2/CDA2
- ・Weight reduced by up to 15%
・Easy air cushion control
・Various switches, such as compact auto switches and magnetic field
resistant auto switches, can be mounted.
・Part numbers with a rod end bracket and/or pivot bracket are available.
(It is not necessary to order a bracket for the applicable cylinder
separately.)
・With auto switch (CDA2 series: CDA2, CDA2W, CDA2K, CDA2KW,
CDBA2,CDA2□H, CDA2W□H)
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | CA2-Z | Double acting, Single rod | 40, 50, 63, 80, 100 |
| Standard | CA2W-Z | Double acting, Double rod | 40, 50, 63, 80, 100 |
| Non-rotating rod | CA2K | Double acting, Single rod | 40, 50, 63 |
| Non-rotating rod | CA2KW | Double acting, Double rod | 40, 50, 63 |
| With end lock | CBA2 | Double acting, Single rod | 40, 50, 63, 80, 100 |
| Air-hydro | CA2□H | Double acting, Single rod | 40, 50, 63, 80, 100 |
| Air-hydro | CA2W□H | Double acting, Double rod | 40, 50, 63, 80, 100 |
Features
Reduced weight by changing the shape of the rod cover and head cover.
Weight reduced by up to 15% lighter（ø63-50 stroke）
1.31 kg（New）←1.54 kg（Existing model）
Easy air cushion control
Number of cushion valve adjustment rotations increased from 1 rotation to 3 rotations. (1.5 rotations for bore size ø40)
Fine adjustment becomes easy, ensuring smooth operation at the stroke end.
Various switches such as compact auto switches and magnetic field resistant auto switches can be mounted.
Made to Order set additionally
・Heat resistant cylinder（-XB6）・With heavy duty scraper（-XC4）
・Adjustable stroke cylinder（-XC8, 9）・Dual stroke cylinder（-XC10, 11） etc. are added.
Part numbers with rod end bracket and/or pivot bracket available
Not necessary to order a bracket for the applicable cylinder separately
Note) Mounting bracket is shipped together with the product, but not assembled.
Various mounting bracket options
・Suitable mounting brackets can be selected for the installation condition.
・Improved amount of mounting freedom
Other Features
Stroke Variations
Series Variations
∗ For details about the clean series, refer to the WEB catalog.
